Machine Information

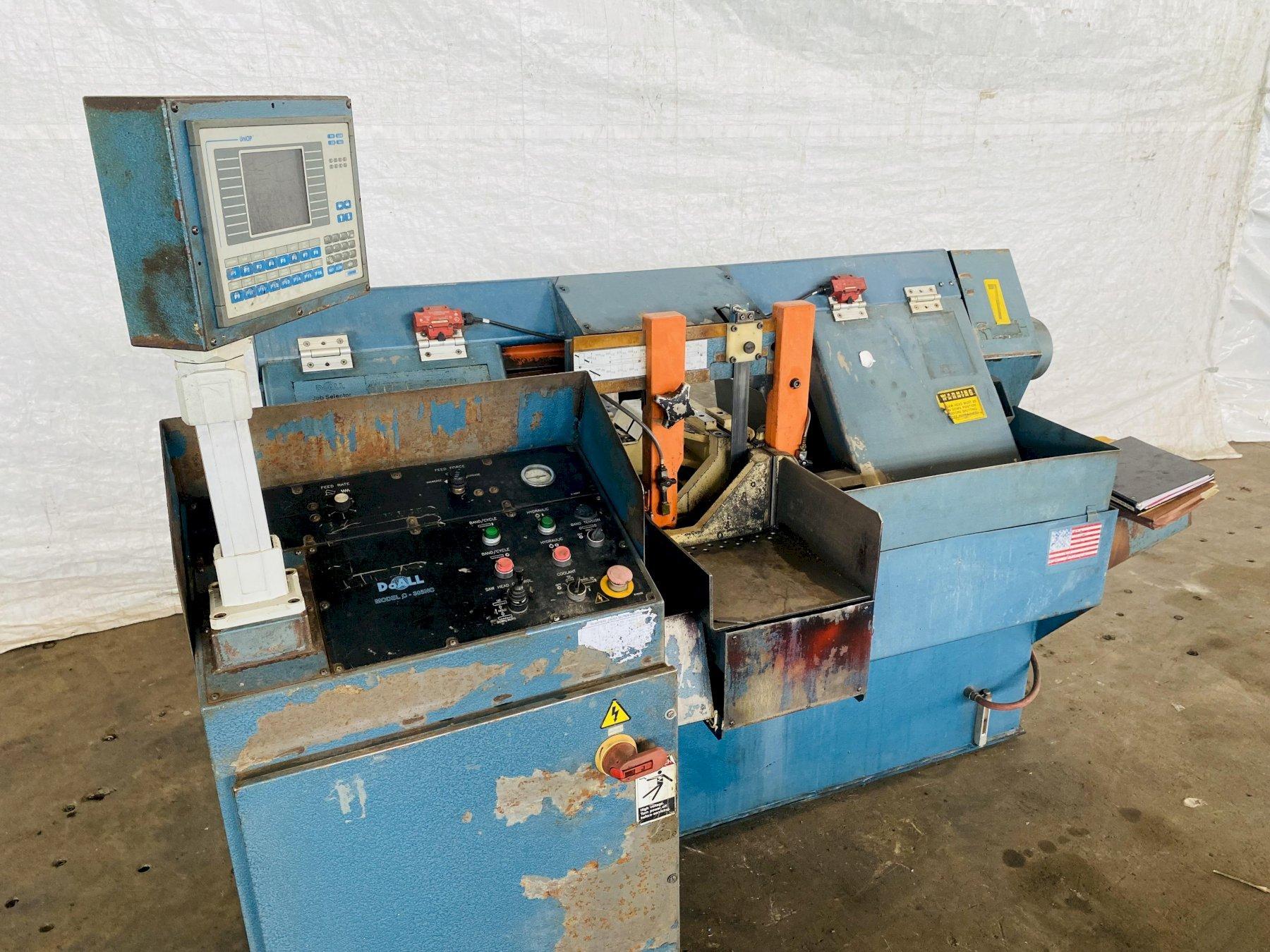

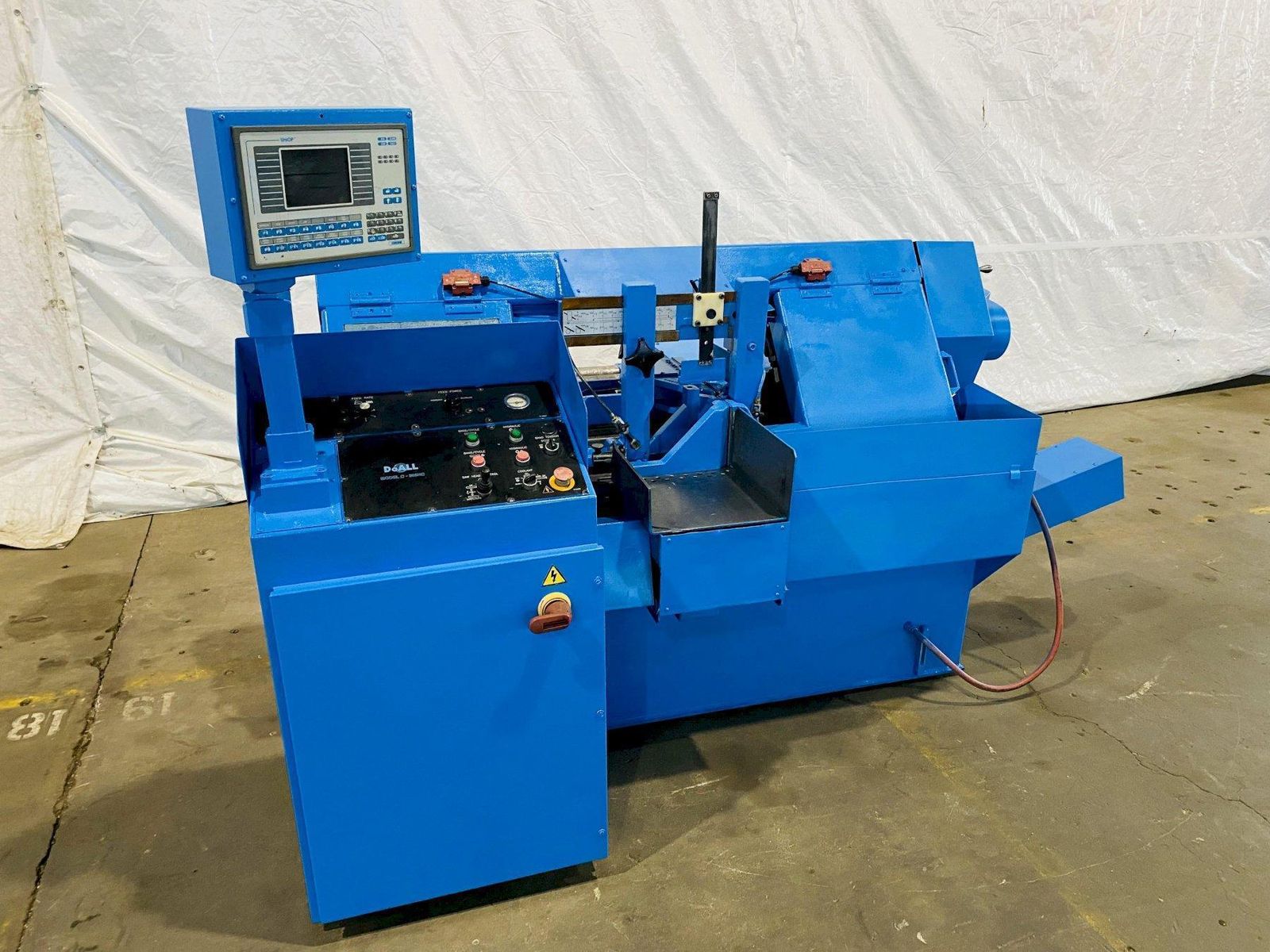

12" X 12" DOALL MODEL #C-305 NC FULLY AUTOMATIC HORIZONTAL SAW BANDSAW: STOCK #14899

Stock #: 14899

Equipped With

SERIAL ...................... 581-06104
YEAR ........................ 2006
MODEL ....................... C-305 NC
CAPACITY RECTANGLES ......... 12" X 12"
CAPACITY ROUNDS ............. 12"
BLADE SPEEDS  ............... 60 TO 350 FPM
BLADE DIMENSION ............. 144" X 1-1/4" X .042
INDEXING FEED INCREMENTS .... 16"
MULTI CYCLE ................. 999"
NC CONTROL .................. UNIOP
HYDRAULIC BAND TENSIONER .... YES
HYDRAULIC HEAD ELEVATION .... YES
COOLANT ..................... YES
CHIP CONVEYOR ............... YES
LOAD CUT HEIGHT ............. 30-1/2"
HYDRAULIC MOTOR ............. 2 HORSEPOWER
MAIN DRIVE MOTOR ............ 5 HORSEPOWER

Buy Machines

12" X 12" DOALL MODEL #C-305 NC FULLY AUTOMATIC HORIZONTAL SAW BANDSAW: STOCK #14899

Stock # 14899

Share Machine
Print Details

Machine Specifications

SERIAL ...................... 581-06104
YEAR ........................ 2006
MODEL ....................... C-305 NC
CAPACITY RECTANGLES ......... 12" X 12"
CAPACITY ROUNDS ............. 12"
BLADE SPEEDS  ............... 60 TO 350 FPM
BLADE DIMENSION ............. 144" X 1-1/4" X .042
INDEXING FEED INCREMENTS .... 16"
MULTI CYCLE ................. 999"
NC CONTROL .................. UNIOP
HYDRAULIC BAND TENSIONER .... YES
HYDRAULIC HEAD ELEVATION .... YES
COOLANT ..................... YES
CHIP CONVEYOR ............... YES
LOAD CUT HEIGHT ............. 30-1/2"
HYDRAULIC MOTOR ............. 2 HORSEPOWER
MAIN DRIVE MOTOR ............ 5 HORSEPOWER
