Machine Information

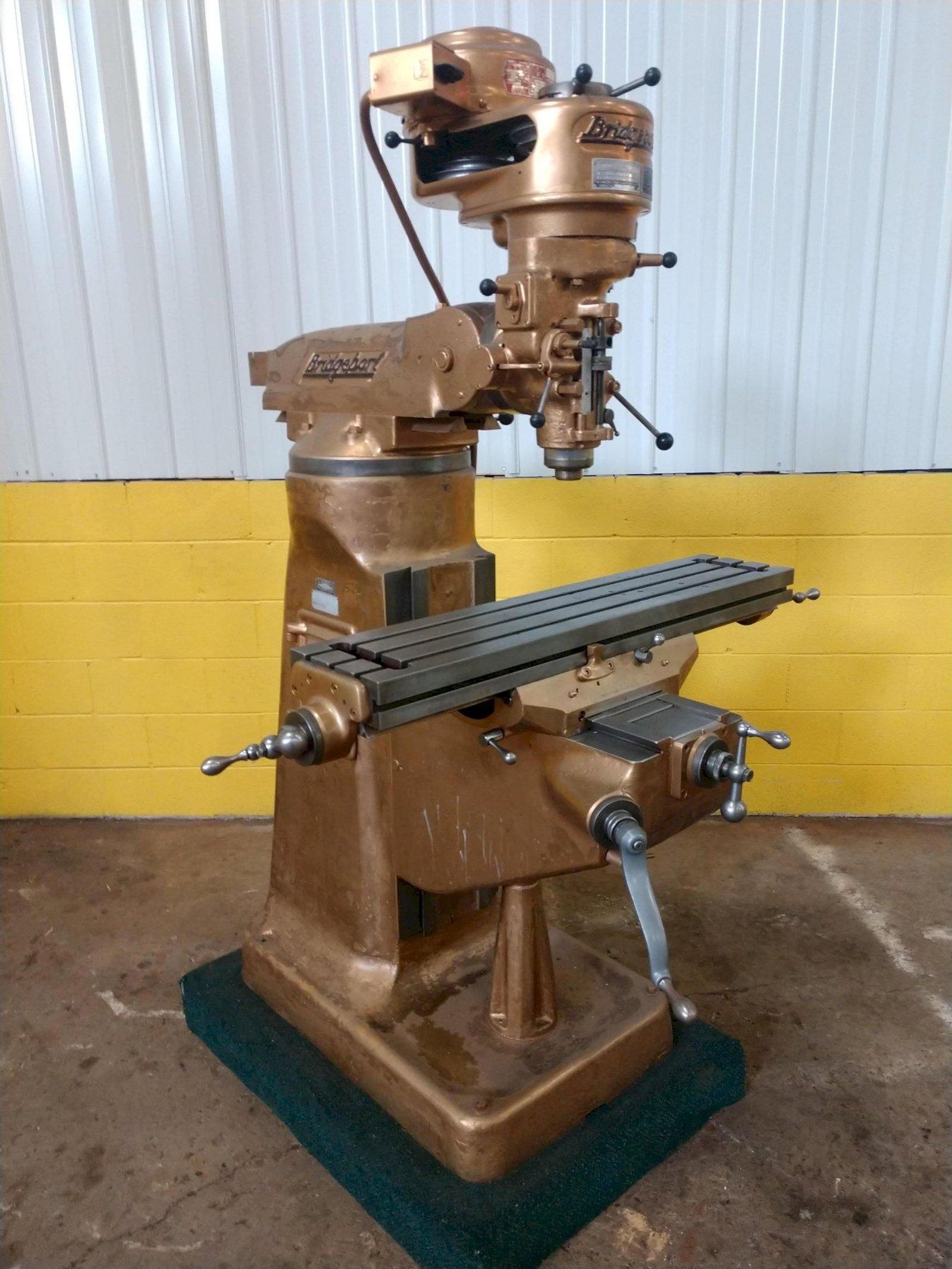

1 HP BRIDGEPORT MODEL #J VERTICAL RAM TYPE MILL: STOCK #12662

Stock #: 12662

Equipped With

SERIAL ............................... J52232

MODEL ................................ J
AREA OF TABLE ........................ 42" X 9"
SPINDLE SPEEDS ....................... 80 TO 2720 RPM
SPINDLE FEEDS ........................ .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ............ 32"
CROSS TRAVEL ......................... 12"
VERTICAL TRAVEL OF KNEE .............. 16"
QUILL TRAVEL ......................... 5"
HEAD TILTS, FORWARD/REVERSE .......... 60 DEGREE
HEAD SWIVELS, LEFT/RIGHT ............. 90 DEGREE
DEPTH OF THROAT ...................... 6-3/4" TO 18-3/4"
SPINDLE TAPER ........................ R-8
MOTOR, HORSEPOWER .................... 1
