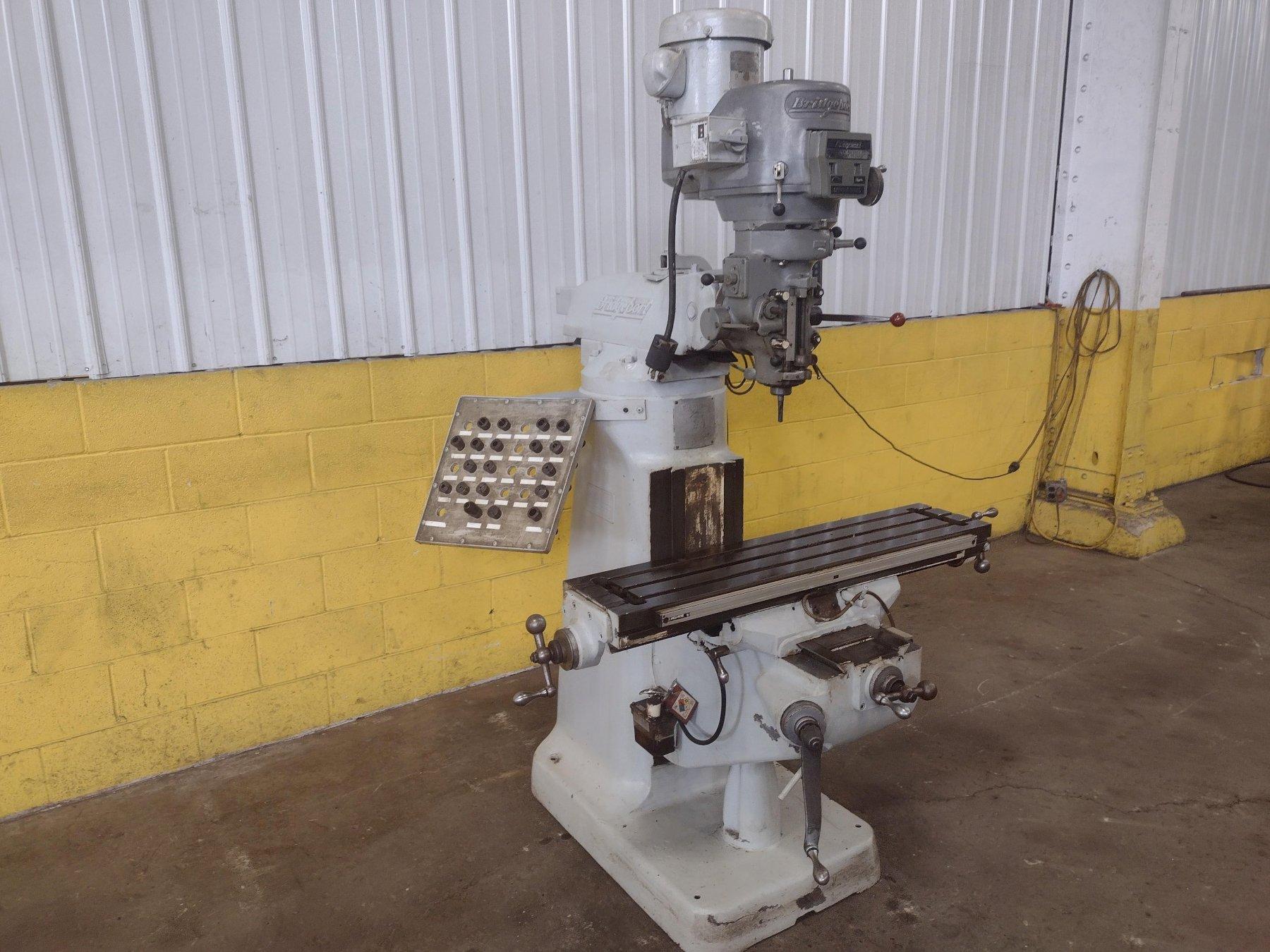

2 HP BRIDGEPORT SERIES I VERTICAL RAM TYPE KNEE MILL: STOCK #15112

Stock #: 15112

Equipped With

SERIAL .............................. 2BR 22243-7
MODEL ............................... SERIES I
AREA OF TABLE ....................... 42" X 9"
SPINDLE SPEEDS, VARIABLE ............ 60 TO 4200 RPM
SPINDLE FEEDS ....................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........... 30"
CROSS TRAVEL ........................ 12"
VERTICAL KNEE TRAVEL ................ 16"
QUILL TRAVEL ........................ 5"
RAM TRAVEL .......................... 12"
DEPTH OF THROAT ..................... 6-3/4" TO 18-3/4"
TAPER IN SPINDLE .................... R8
HEAD TILTS, FRONT/BACK .............. 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ............ 90 DEGREE EITHER WAY
DIGITAL READ OUT .................... YES
CHROME WAYS ......................... YES
1 SHOT LUBE ......................... YES
MOTOR ............................... 2 HORSEPOWER

Buy Machines

2 HP BRIDGEPORT SERIES I VERTICAL RAM TYPE KNEE MILL: STOCK #15112

Stock # 15112

Share Machine
Print Details

Machine Specifications

SERIAL .............................. 2BR 22243-7
MODEL ............................... SERIES I
AREA OF TABLE ....................... 42" X 9"
SPINDLE SPEEDS, VARIABLE ............ 60 TO 4200 RPM
SPINDLE FEEDS ....................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........... 30"
CROSS TRAVEL ........................ 12"
VERTICAL KNEE TRAVEL ................ 16"
QUILL TRAVEL ........................ 5"
RAM TRAVEL .......................... 12"
DEPTH OF THROAT ..................... 6-3/4" TO 18-3/4"
TAPER IN SPINDLE .................... R8
HEAD TILTS, FRONT/BACK .............. 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ............ 90 DEGREE EITHER WAY
DIGITAL READ OUT .................... YES
CHROME WAYS ......................... YES
1 SHOT LUBE ......................... YES
MOTOR ............................... 2 HORSEPOWER
