Machine Information

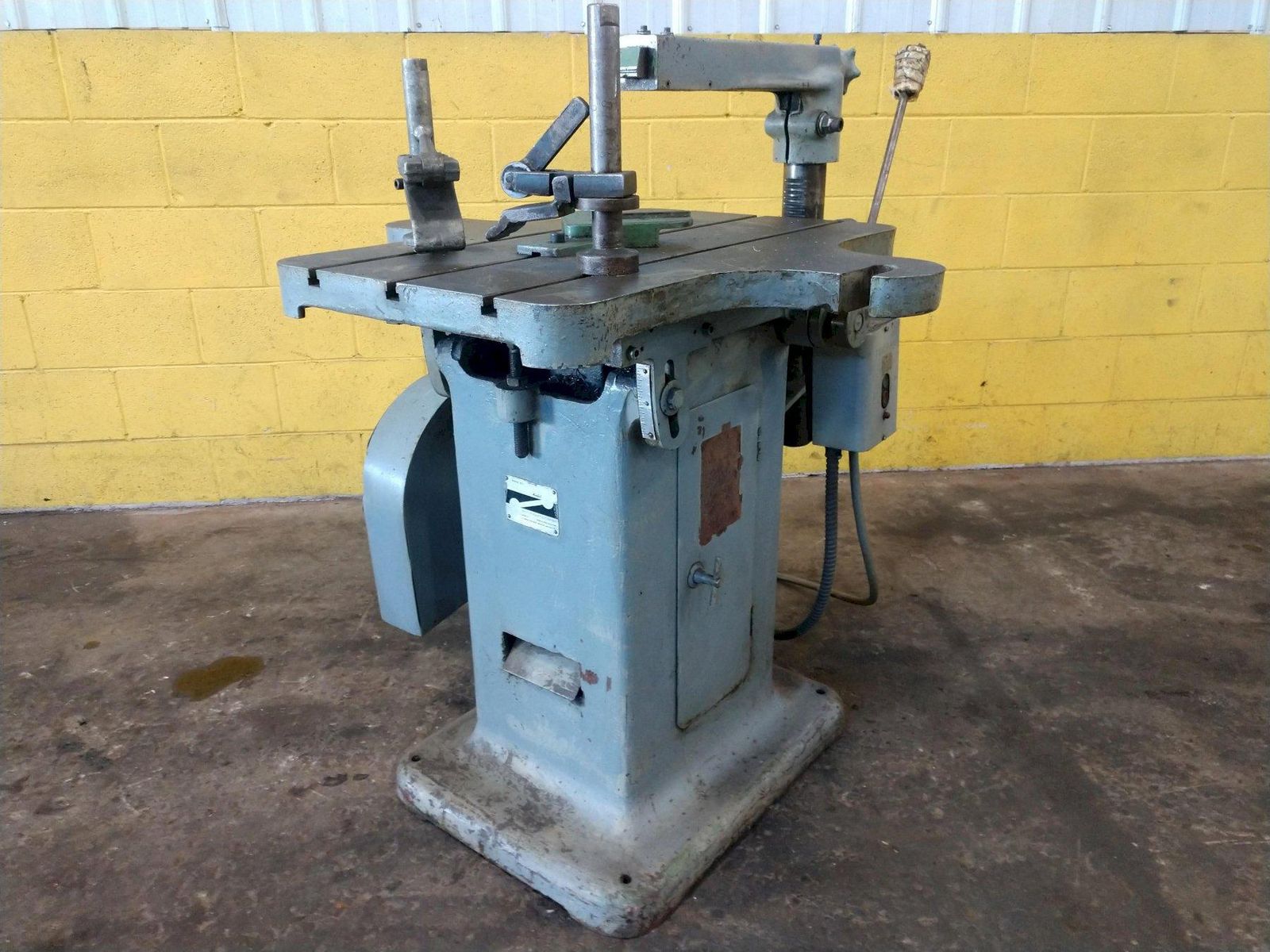

1.5" DAVIS MODEL #5 KEYSEATER: STOCK 13217

Stock #: 13217

Equipped With

SERIAL ......................................... 5-1083
MODEL .......................................... 5
CAPACITY ....................................... 1/16" TO 1-1/2"
LENGTH OF KEY WITH 16" CUTTER .................. 3-1/2"
LENGTH OF KEY WITH 20" CUTTER .................. 7-1/2"
DISTANCE FROM CUTTER TO RESISTANCE ARM POST .... 17-1/2"
MAXIMUM HEIGHT ................................. 12"
TABLE MOVEMENT ................................. 1-3/8"
TABLE DIMENSION ................................ 31" X 30-1/4"
T-SLOTS IN TABLE ............................... 3
STROKES PER MINUTE ............................. 48
TILT TABLE ..................................... YES
RESISTANCE BAR ................................. YES
MOTOR .......................................... 2 HORSEPOWER


Buy Machines

1.5" DAVIS MODEL #5 KEYSEATER: STOCK 13217

Stock # 13217

Share Machine
Print Details

Machine Specifications

SERIAL ......................................... 5-1083
MODEL .......................................... 5
CAPACITY ....................................... 1/16" TO 1-1/2"
LENGTH OF KEY WITH 16" CUTTER .................. 3-1/2"
LENGTH OF KEY WITH 20" CUTTER .................. 7-1/2"
DISTANCE FROM CUTTER TO RESISTANCE ARM POST .... 17-1/2"
MAXIMUM HEIGHT ................................. 12"
TABLE MOVEMENT ................................. 1-3/8"
TABLE DIMENSION ................................ 31" X 30-1/4"
T-SLOTS IN TABLE ............................... 3
STROKES PER MINUTE ............................. 48
TILT TABLE ..................................... YES
RESISTANCE BAR ................................. YES
MOTOR .......................................... 2 HORSEPOWER


Specifications
Keyway Width 1.5 inches
Keyway Length 7.5 inches
Weight 1300 pounds
