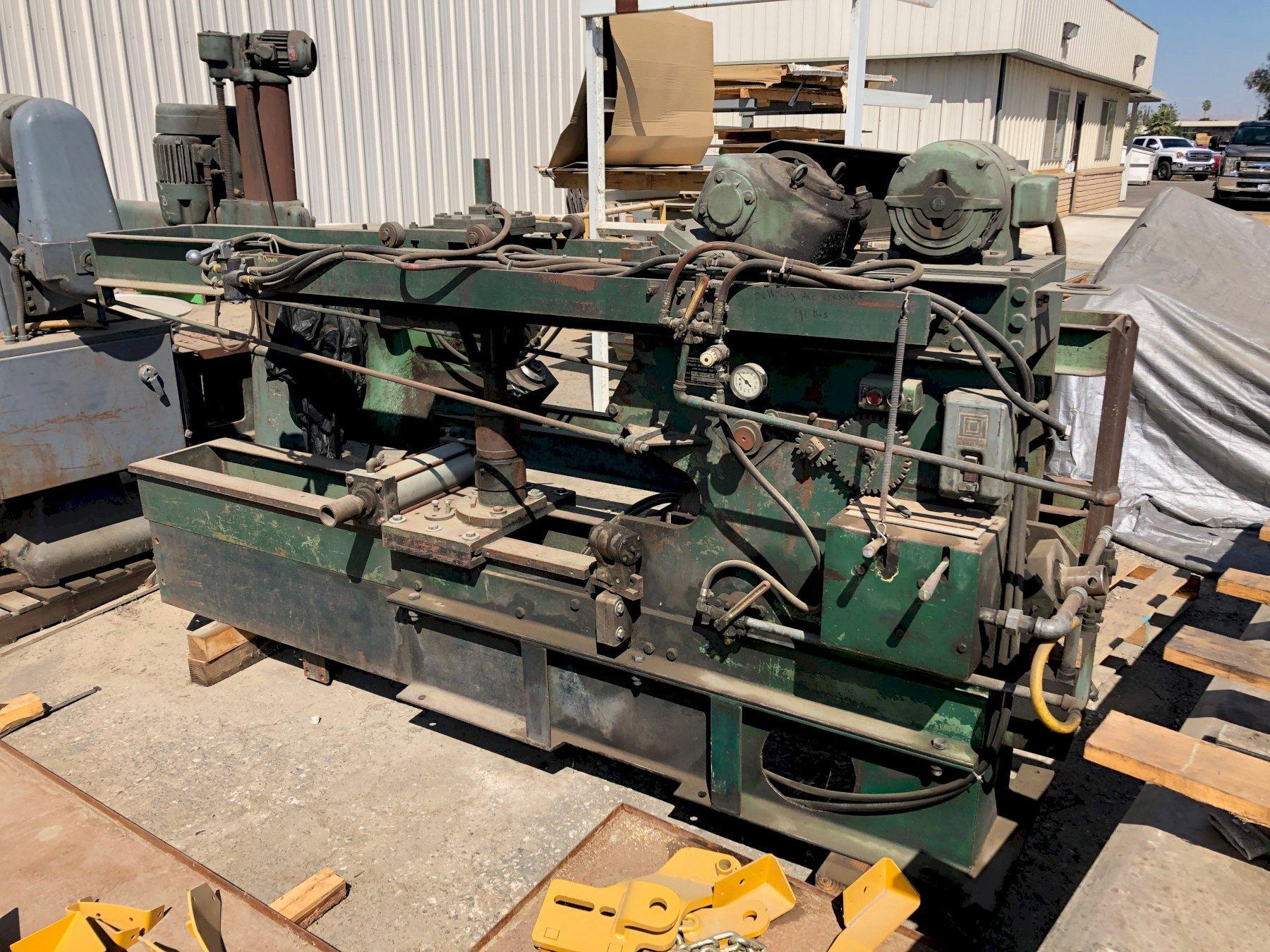

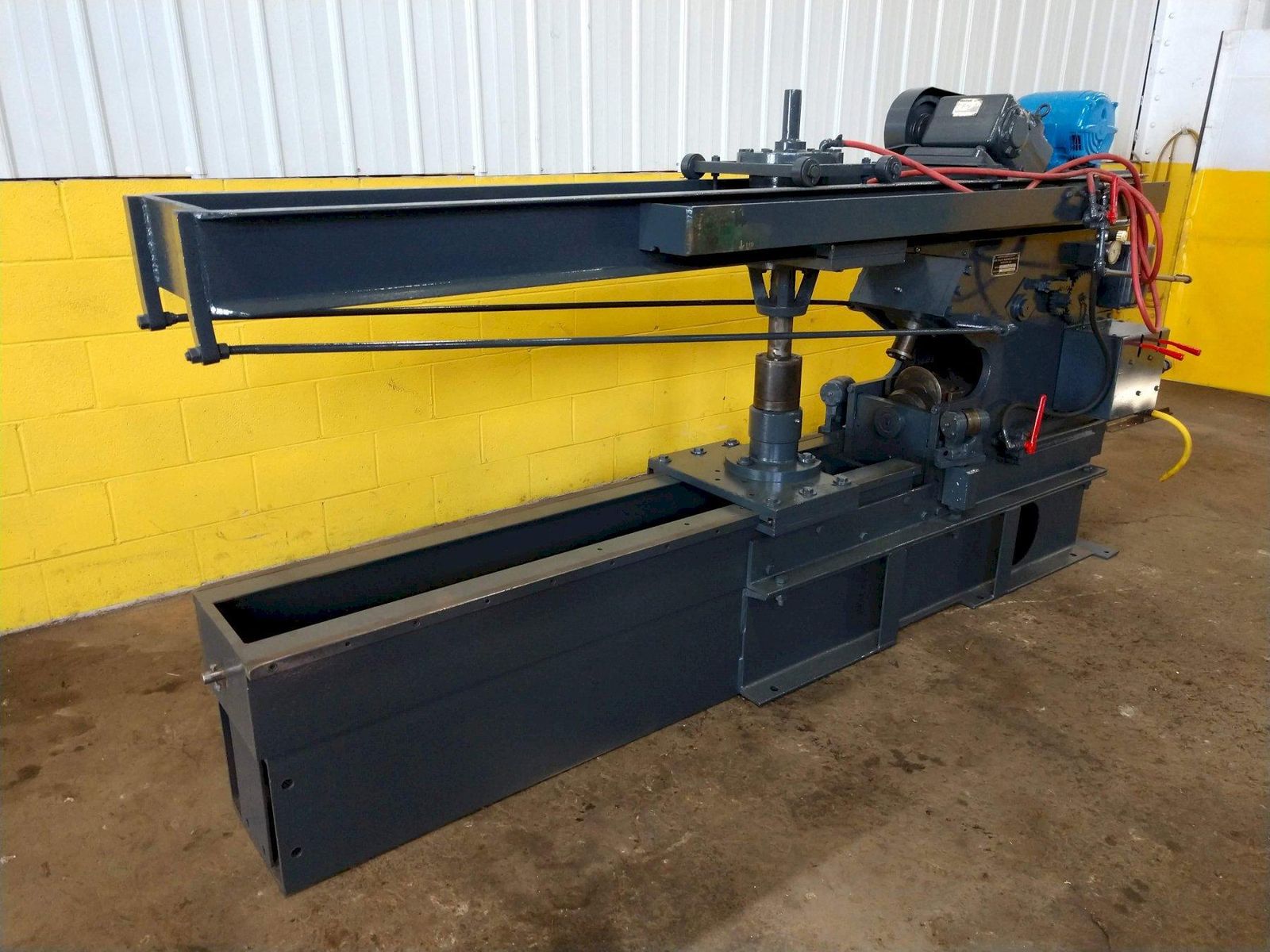

1/4" BLUE VALLEY MODEL #3 FLANGER: STOCK 11289

Stock #: 11289

Equipped With

SERIAL .................................. 3-969


MODEL ................................... #3


CAPACITY ................................ 1/4" MILD STEEL


CAPACITY STAINLESS STEEL ................ 60 PERCENT OF 1/4"


WORKING DIAMETER ........................ 20" MIN, 12' MAX


VERTICAL ADJUSTMENT OF FLANGE ROLL ...... HYDRAULIC


HORIZONTAL ADJUSTMENT OF FLANGE ROLL .... HYDRAULIC


ALL STEEL WELDED CONSTRUCTION ........... YES


PNEUMATIC CENTER HOLD DOWN .............. YES


MULTIPLE "V" BELT DRIVE ................. YES


SIDE GUIDE ROLLS ........................ YES


ELECTRICAL CONTROLS ..................... YES


MAIN DRIVE MOTOR ........................ 5 HP




Buy Machines

1/4" BLUE VALLEY MODEL #3 FLANGER: STOCK 11289

Stock # 11289

Request a Quote
Share Machine
Print Details
Make an Offer
Download Images
View All Images

Machine Specifications

SERIAL .................................. 3-969
MODEL ................................... #3
CAPACITY ................................ 1/4" MILD STEEL
CAPACITY STAINLESS STEEL ................ 60 PERCENT OF 1/4"
WORKING DIAMETER ........................ 20" MIN, 12' MAX
VERTICAL ADJUSTMENT OF FLANGE ROLL ...... HYDRAULIC
HORIZONTAL ADJUSTMENT OF FLANGE ROLL .... HYDRAULIC
ALL STEEL WELDED CONSTRUCTION ........... YES
PNEUMATIC CENTER HOLD DOWN .............. YES
MULTIPLE "V" BELT DRIVE ................. YES
SIDE GUIDE ROLLS ........................ YES
ELECTRICAL CONTROLS ..................... YES
MAIN DRIVE MOTOR ........................ 5 HP


Specifications
Max Thickness .250 inches
Dimensions 15 X 5 X 7' H
Weight 5000 pounds
