Machine Information

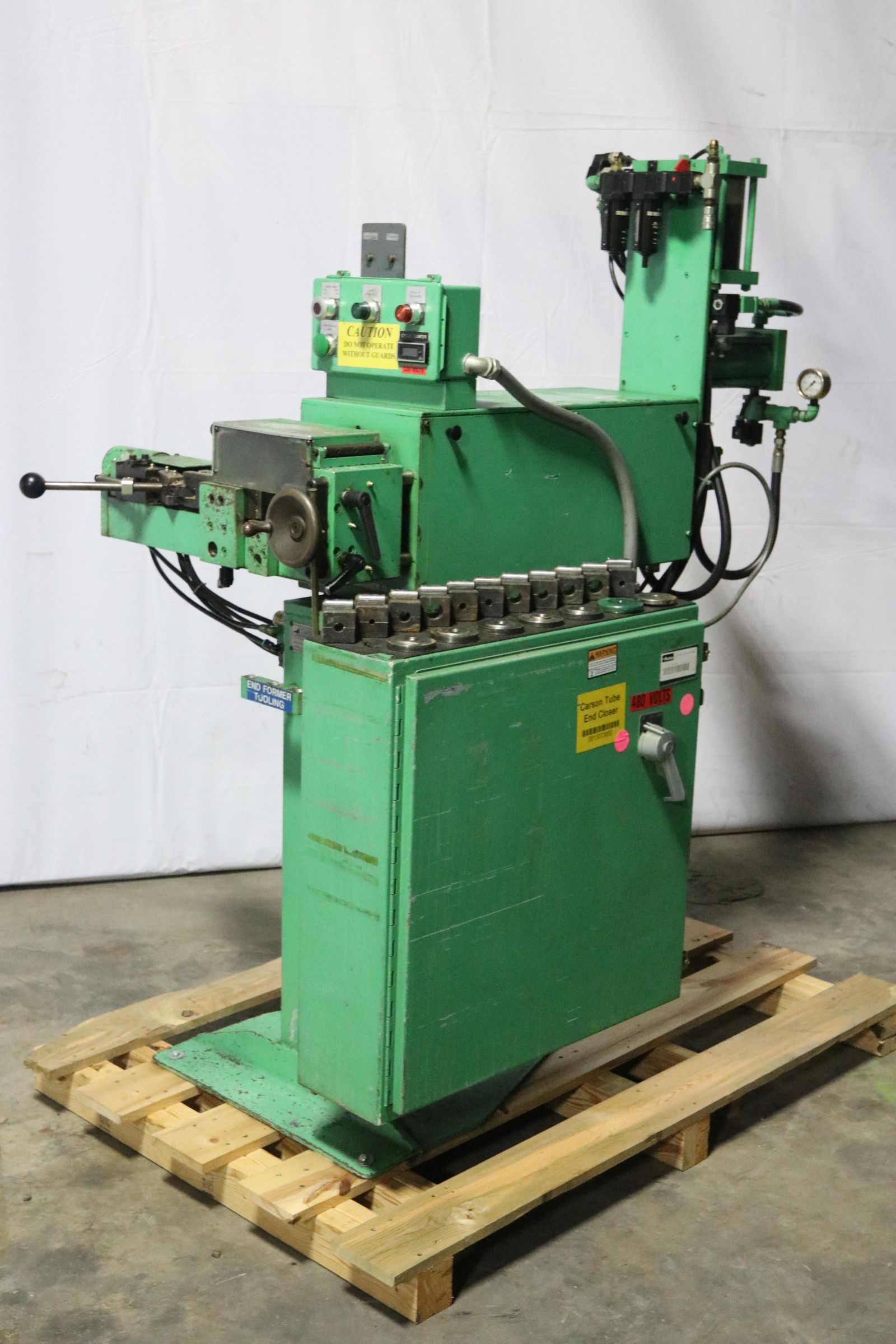

1-3/8" CARSON MODEL TRC-1 FLAT END SPINNER & TUBE END CLOSING MACHINE: STOCK #10496

Stock #: 10496

Equipped With

SERIAL ..................... 970795
NEW ........................ 1997
MODEL ...................... TRC-1
CAPACITY TUBE .............. 1/4" TO 1-3/8"

MODEL TRC-1 TUBE END CLOSER

Model TRC-1 is a machine for closing the ends of thin-walled copper, aluminum or steel tubes. The tube is clamped in a set of holding jaws and held stationary during closing which allows for processing of tubes that are pre-bent or punched. This “cold” process produces a flat end close of superior strength.
FEATURES AND SPECIFICATIONS FOR MODEL #TRC-1 END CLOSER

Range in tube sizes 1/4” to 1 3/8” O.D.
Flat end close rather than dome type, resulting in minimal tube loss
Simple quick-change tooling schematic
Process does not heat the tube
Roller tools and clamp jaws constructed from hardened tool steel
