SERIAL ............................ K005413
NEW ............................... 2000
CUTS KEYWAYS ...................... 1/8" TO 1-1/4"
MAXIMUM LENGTH OF CUT ............. 9"
LENGTH OF STROKE .................. 3", 4-1/2", 6", 7-1/2", 9"
STROKES PER MINUTE ................ 34
DIAMETER OF CUTTER BAR ............ 1-1/4"
MAXIMUM DISTANCE UNDER CLAMP ...... 14"
DISTANCE BETWEEN CLAMPS ........... 25-1/2"
AREA OF TABLE ..................... 24" X 27"
TABLE HEIGHT FROM FLOOR ........... 36"
POWER INFEED ...................... YES
DRIVE MOTOR ...................... 3
| Specifications | ||
|---|---|---|
| Keyway Width | 1.25 inches | |
| Keyway Length | 9 inches | |
Brand

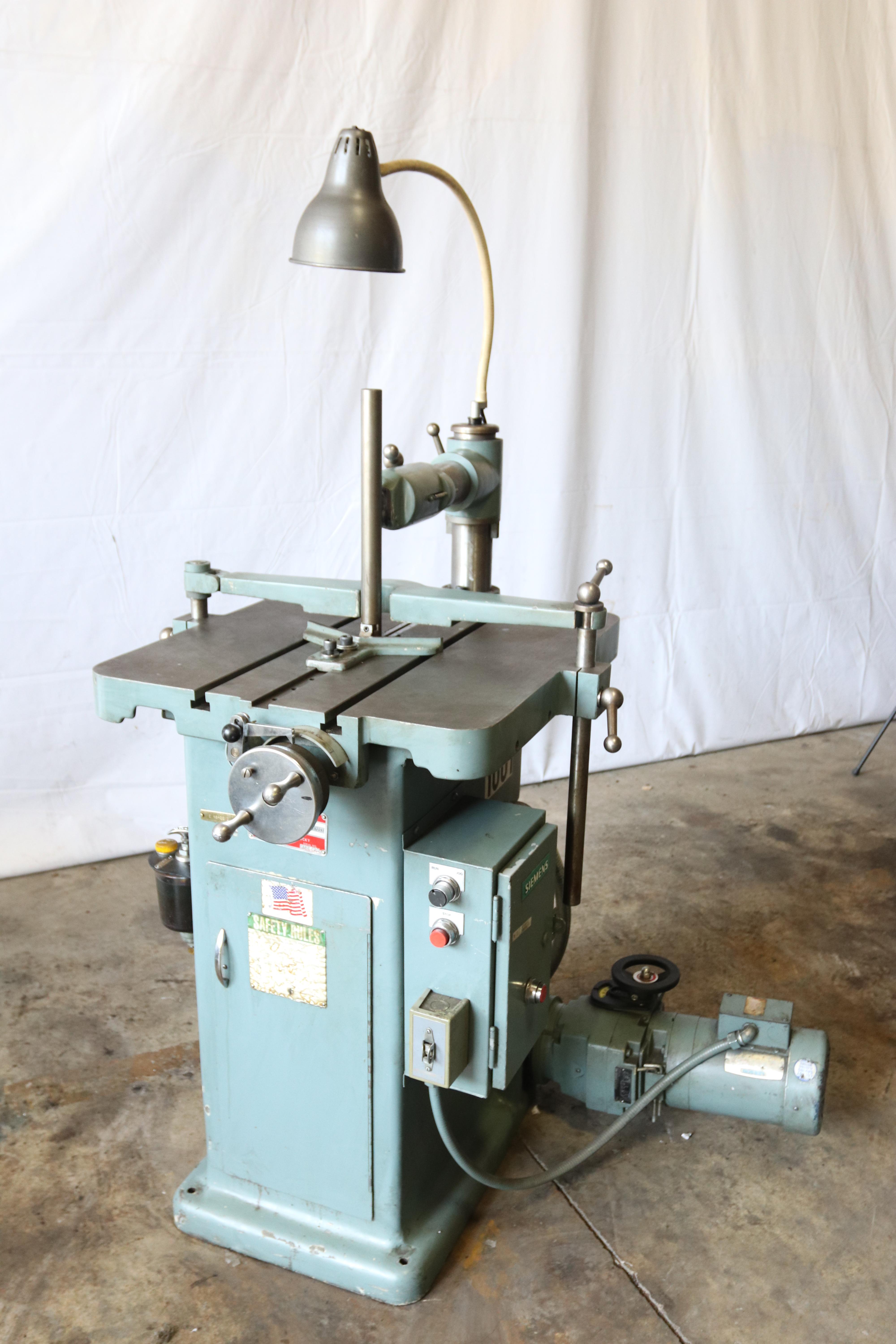

D.C. MORRISON
Type
Keyseaters
Stock No.
10640
 |
419-269-2000 |
Stock #: 10640
SERIAL ............................ K005413
NEW ............................... 2000
CUTS KEYWAYS ...................... 1/8" TO 1-1/4"
MAXIMUM LENGTH OF CUT ............. 9"
LENGTH OF STROKE .................. 3", 4-1/2", 6", 7-1/2", 9"
STROKES PER MINUTE ................ 34
DIAMETER OF CUTTER BAR ............ 1-1/4"
MAXIMUM DISTANCE UNDER CLAMP ...... 14"
DISTANCE BETWEEN CLAMPS ........... 25-1/2"
AREA OF TABLE ..................... 24" X 27"
TABLE HEIGHT FROM FLOOR ........... 36"
POWER INFEED ...................... YES
DRIVE MOTOR ...................... 3
