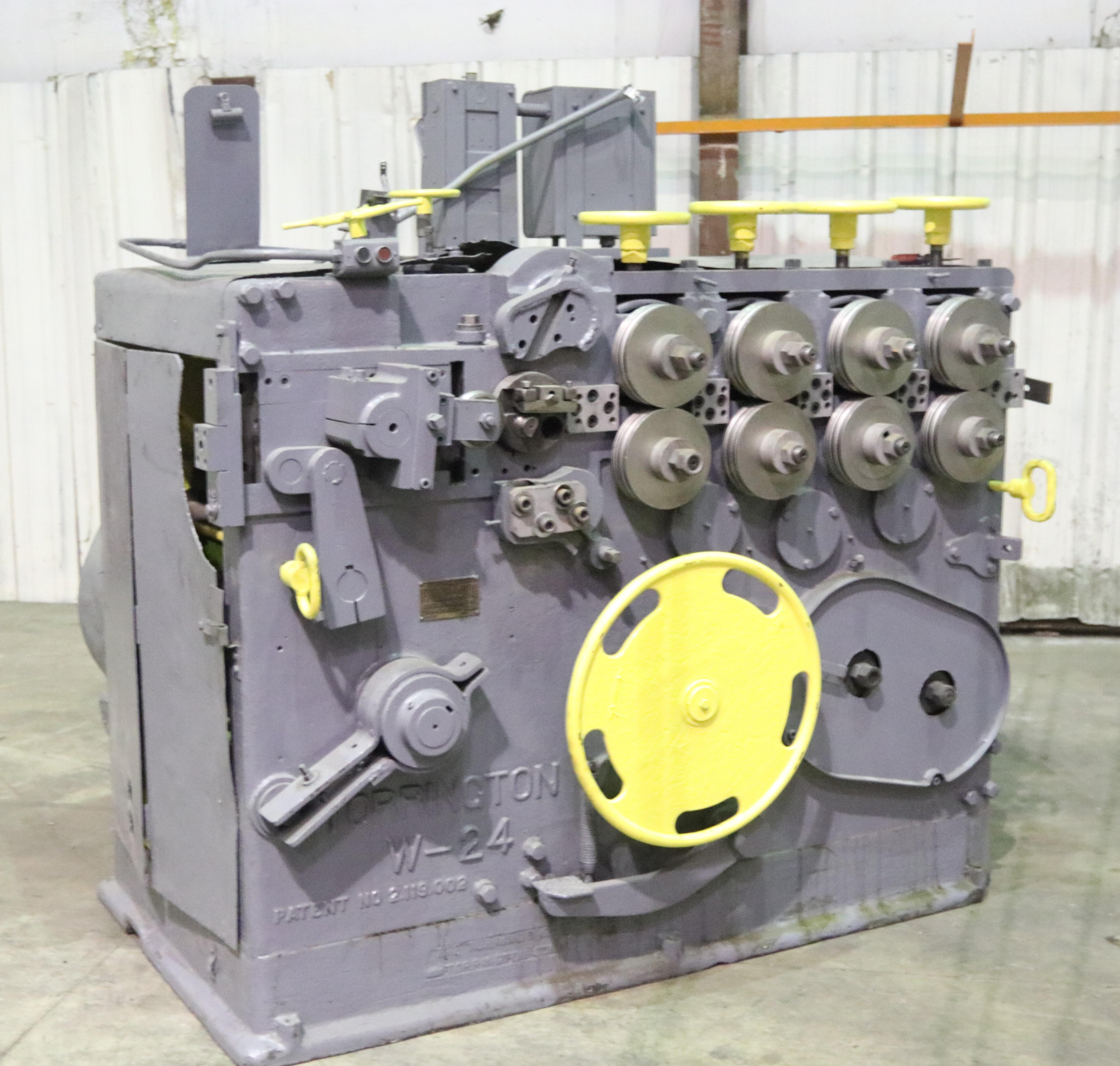

1/2" TORRINGTON MODEL #W24 AUTOMATIC SPRING COILER: STOCK 10400

Stock #: 10400

Equipped With

SERIAL........................ 38942
MODEL......................... W24

Wire Diameter:
Minimum....................... .187"
Maximum....................... .500"
Wire Feed: Minimum............ 3.67"
Maximum....................... 815"
Coil O.D. Minimum............. 5 x Wire Diameter
Maximum....................... 6"
Production:................... 2 To 50 Springs Per Minute
Floor Space:.................. 74” X 80”
Weight:....................... 14,000 Lbs.

Equipped with:
Double Diameter, Single Pitch
Tool Holder for 1.750” Arbor Shank
Motorized Coil Starter
Roller Coiling Point Holder
20HP Single Speed Motor

Buy Machines

1/2" TORRINGTON MODEL #W24 AUTOMATIC SPRING COILER: STOCK 10400

Stock # 10400

Share Machine
Print Details

Machine Specifications

SERIAL........................ 38942
MODEL......................... W24

Wire Diameter:
Minimum....................... .187"
Maximum....................... .500"
Wire Feed: Minimum............ 3.67"
Maximum....................... 815"
Coil O.D. Minimum............. 5 x Wire Diameter
Maximum....................... 6"
Production:................... 2 To 50 Springs Per Minute
Floor Space:.................. 74” X 80”
Weight:....................... 14,000 Lbs.

Equipped with:
Double Diameter, Single Pitch
Tool Holder for 1.750” Arbor Shank
Motorized Coil Starter
Roller Coiling Point Holder
20HP Single Speed Motor

Specifications
Max Wire Dia. .5 inches
Dimensions 74” X 80”
Weight 14000 pounds
