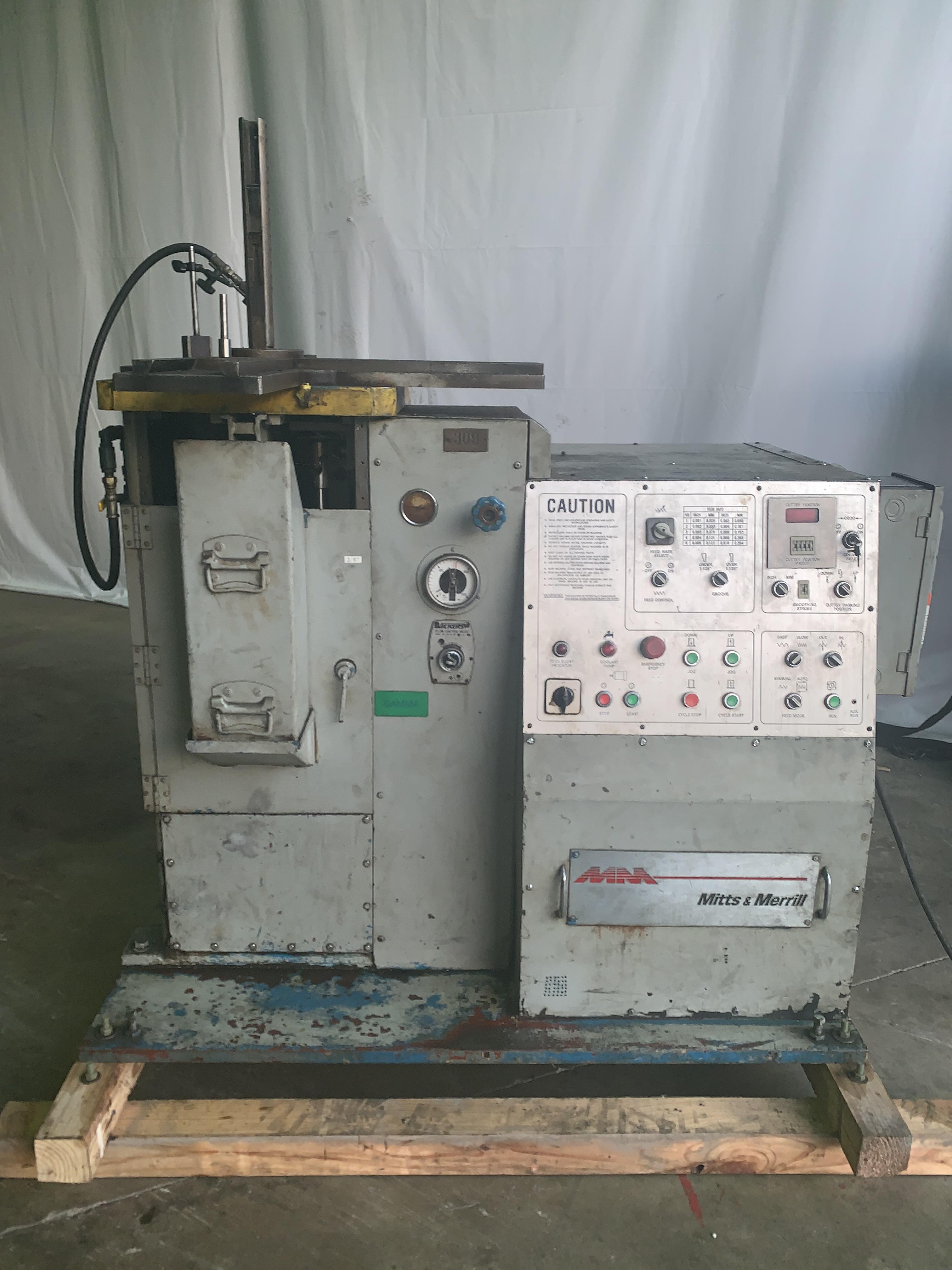

1-1/4" X 12" MITTS & MERRILL #K1212 PC/HYDRAULIC KEYSEATER: STOCK #11063

Stock #: 11063

Equipped With

SERIAL ..................... KM89001
MODEL ...................... K1212
YEAR ....................... 1989
FLOOR MOUNTED, NO PIT REQUIRED
MAXIMUM KEYWAY LENGTH --------------------- 12"
MAXIMUM KEYWAY WIDTH ---------------------- 1-1/4"
MAXIMUM TABLE LOAD ------------------------ 5,000 LBS.
MAXIMUM WORKPIECE DIAMETER ---------------- UNLIMITED
CUTTING SPEED, VARIABLE ------------------- 0 TO 38 FPM
RETURN SPEED, CONSTANT -------------------- 54 FPM
FEED RATED PER STROKE, VARIABLE ----------- .001" TO .010"
CROSSHEAD PULL IN LBS. AT 1,000 PSI ------- 4,900 LBS.
MAIN DRIVE MOTOR -------------------------- 5-1/2 HP
APPROXIMATE FLOOR SPACE ------------------- 57" X 41"
STANDARD EQUIPMENT ---
  MICROPROCESSOR CONTROLS
  ADJUSTABLE CHIP SPOUT PRESSURE
  REMOTE FEED CONTROLS
  HYDRAULIC TOOL RELIEF
  COMPLETE SYSTEM EMERGENCY STOP
  VARIABLE CUTTING SPEED CONTROL
  RECIRCULATING CUTTER COOLANT
  AUTOMATIC LUBRICATION
  PRECISION GROUND T-SLOTTED TABLE
  ENCLOSED CHIP DISPOSAL SYSTEM
  AUTOMATIC CUTTER RETRACT
  JOG CONTROL FOR FAST SET UP
  LARGE ASSORTMENT OF TOOLING

Buy Machines

1-1/4" X 12" MITTS & MERRILL #K1212 PC/HYDRAULIC KEYSEATER: STOCK #11063

Stock # 11063

Share Machine
Print Details

Machine Specifications

SERIAL ..................... KM89001
MODEL ...................... K1212
YEAR ....................... 1989

FLOOR MOUNTED, NO PIT REQUIRED
MAXIMUM KEYWAY LENGTH --------------------- 12"
MAXIMUM KEYWAY WIDTH ---------------------- 1-1/4"
MAXIMUM TABLE LOAD ------------------------ 5,000 LBS.
MAXIMUM WORKPIECE DIAMETER ---------------- UNLIMITED
CUTTING SPEED, VARIABLE ------------------- 0 TO 38 FPM
RETURN SPEED, CONSTANT -------------------- 54 FPM
FEED RATED PER STROKE, VARIABLE ----------- .001" TO .010"
CROSSHEAD PULL IN LBS. AT 1,000 PSI ------- 4,900 LBS.
MAIN DRIVE MOTOR -------------------------- 5-1/2 HP
APPROXIMATE FLOOR SPACE ------------------- 57" X 41"
STANDARD EQUIPMENT ---
  MICROPROCESSOR CONTROLS
  ADJUSTABLE CHIP SPOUT PRESSURE
  REMOTE FEED CONTROLS
  HYDRAULIC TOOL RELIEF
  COMPLETE SYSTEM EMERGENCY STOP
  VARIABLE CUTTING SPEED CONTROL
  RECIRCULATING CUTTER COOLANT
  AUTOMATIC LUBRICATION
  PRECISION GROUND T-SLOTTED TABLE
  ENCLOSED CHIP DISPOSAL SYSTEM
  AUTOMATIC CUTTER RETRACT
  JOG CONTROL FOR FAST SET UP
  LARGE ASSORTMENT OF TOOLING

Specifications
Keyway Width 1.25 inches
Keyway Length 12 inches
