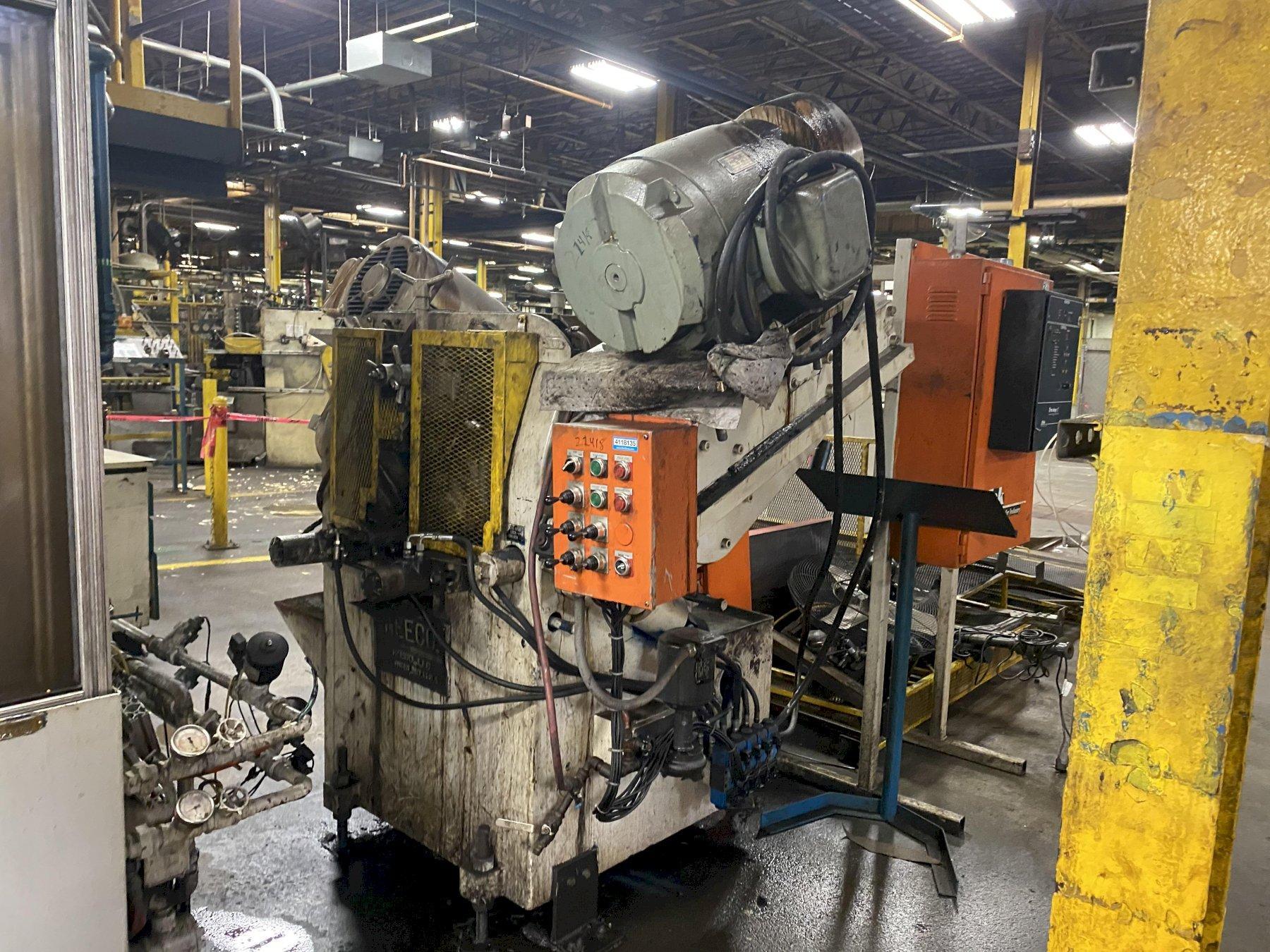

1-1/2" MEECO MODEL #HDO 2R2M BAR & ROD STRAIGHTENER: STOCK #13677

Stock #: 13677

Equipped With

SERIAL ..................... 3A20707
MODEL ...................... HDO 2R2M
CAPACITY ................... 1/4" - 1-1/2"
ROLL SIZE - STRAIGHT ....... 9.5" X 8.25" DIA X 3.5" BORE
            CONCAVE  ....... 12" LONG X 8.75" DIA X 3.5" BORE
ROLL SHAFT SIZE ............ 3.5" THROUGH ROLL X 2-7/8" BEARINGS
CATALOG OPERATING SPEED .... 110-190-250
PASSLINE HEIGHT ............ 48"
2 ROLL & 2 MOTOR DESIGN .... YES
3 SPEED GEAR BOX ........... YES
MOTOR ...................... 25 HP EACH

Buy Machines

1-1/2" MEECO MODEL #HDO 2R2M BAR & ROD STRAIGHTENER: STOCK #13677

Stock # 13677

Share Machine
Print Details
Download Images

Machine Specifications

SERIAL ..................... 3A20707
MODEL ...................... HDO 2R2M
CAPACITY ................... 1/4" - 1-1/2"
ROLL SIZE - STRAIGHT ....... 9.5" X 8.25" DIA X 3.5" BORE
            CONCAVE  ....... 12" LONG X 8.75" DIA X 3.5" BORE
ROLL SHAFT SIZE ............ 3.5" THROUGH ROLL X 2-7/8" BEARINGS
CATALOG OPERATING SPEED .... 110-190-250
PASSLINE HEIGHT ............ 48"
2 ROLL & 2 MOTOR DESIGN .... YES
3 SPEED GEAR BOX ........... YES
MOTOR ...................... 25 HP EACH
