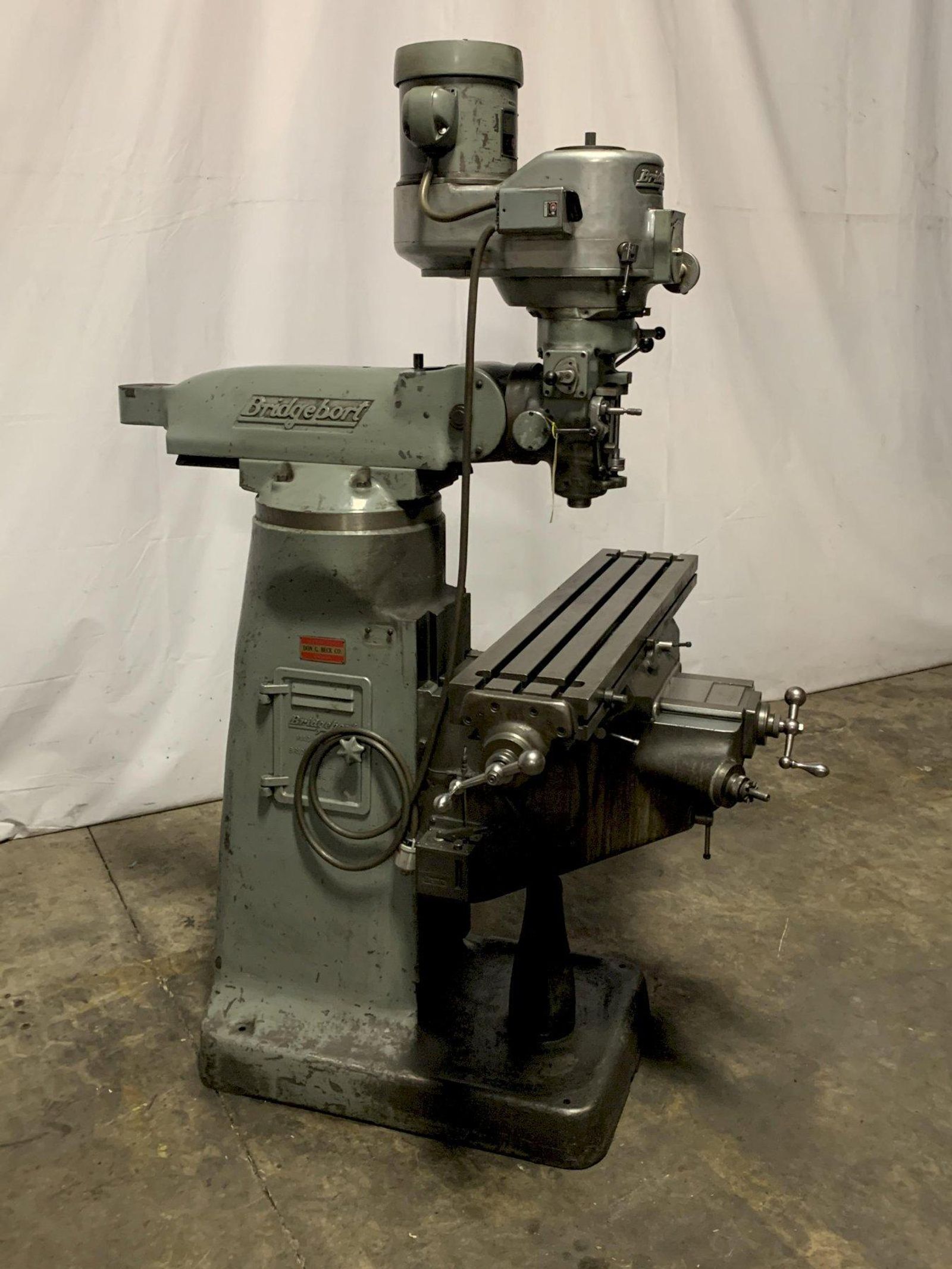

1-1/2 HP BRIDGEPORT VERTICAL MILLING MACHINE: STOCK #10751

Stock #: 10751

Equipped With

SERIAL ........................... 133024
MODEL ............................ SERIES 1
AREA OF TABLE .................... 48" X 9"
SPINDLE SPEEDS, VARIABLE ......... 60 TO 4200 RPM
SPINDLE FEEDS .................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........ 36"
CROSS TRAVEL ..................... 12"
VERTICAL KNEE TRAVEL ............. 16"
QUILL TRAVEL ..................... 5"
RAM TRAVEL ....................... 12"
DEPTH OF THROAT .................. 6-3/4" TO 18-3/4"
TAPER IN SPINDLE ................. R8
HEAD TILTS, FRONT/BACK ........... 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ......... 90 DEGREE EITHER WAY
CHROME KNEE WAYS ................. YES
1 SHOT LUBE ...................... YES
MOTOR ............................ 1.5 HORSEPOWER

Buy Machines

1-1/2 HP BRIDGEPORT VERTICAL MILLING MACHINE: STOCK #10751

Stock # 10751

Share Machine
Print Details

Machine Specifications

SERIAL ........................... 133024
MODEL ............................ SERIES 1
AREA OF TABLE .................... 48" X 9"
SPINDLE SPEEDS, VARIABLE ......... 60 TO 4200 RPM
SPINDLE FEEDS .................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........ 36"
CROSS TRAVEL ..................... 12"
VERTICAL KNEE TRAVEL ............. 16"
QUILL TRAVEL ..................... 5"
RAM TRAVEL ....................... 12"
DEPTH OF THROAT .................. 6-3/4" TO 18-3/4"
TAPER IN SPINDLE ................. R8
HEAD TILTS, FRONT/BACK ........... 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ......... 90 DEGREE EITHER WAY
CHROME KNEE WAYS ................. YES
1 SHOT LUBE ...................... YES
MOTOR ............................ 1.5 HORSEPOWER

Specifications
Table-W 9 inches
Table-L 42 inches
Power 1.5 horsepower
RPM 4200
