Brand
VERNON TOOL
Type
Welders, Pipe & Tube
Stock No.
24911
 |
419-269-2000 |
Stock #: 24911
Serial .................... 6199
Year New .................. 2006
Model ..................... MPM4-0342
Pipe Capacity Diameter .... 3" to 42"
Number of Axis ............ (4) X,Y,Z & Vert
Cutting speed ............. 200 IPM Max
Rotation speed ............ 0 to 200 IPM
Conveyor rotation speed ... Up to 50 RPM
Head travel ............... 40'

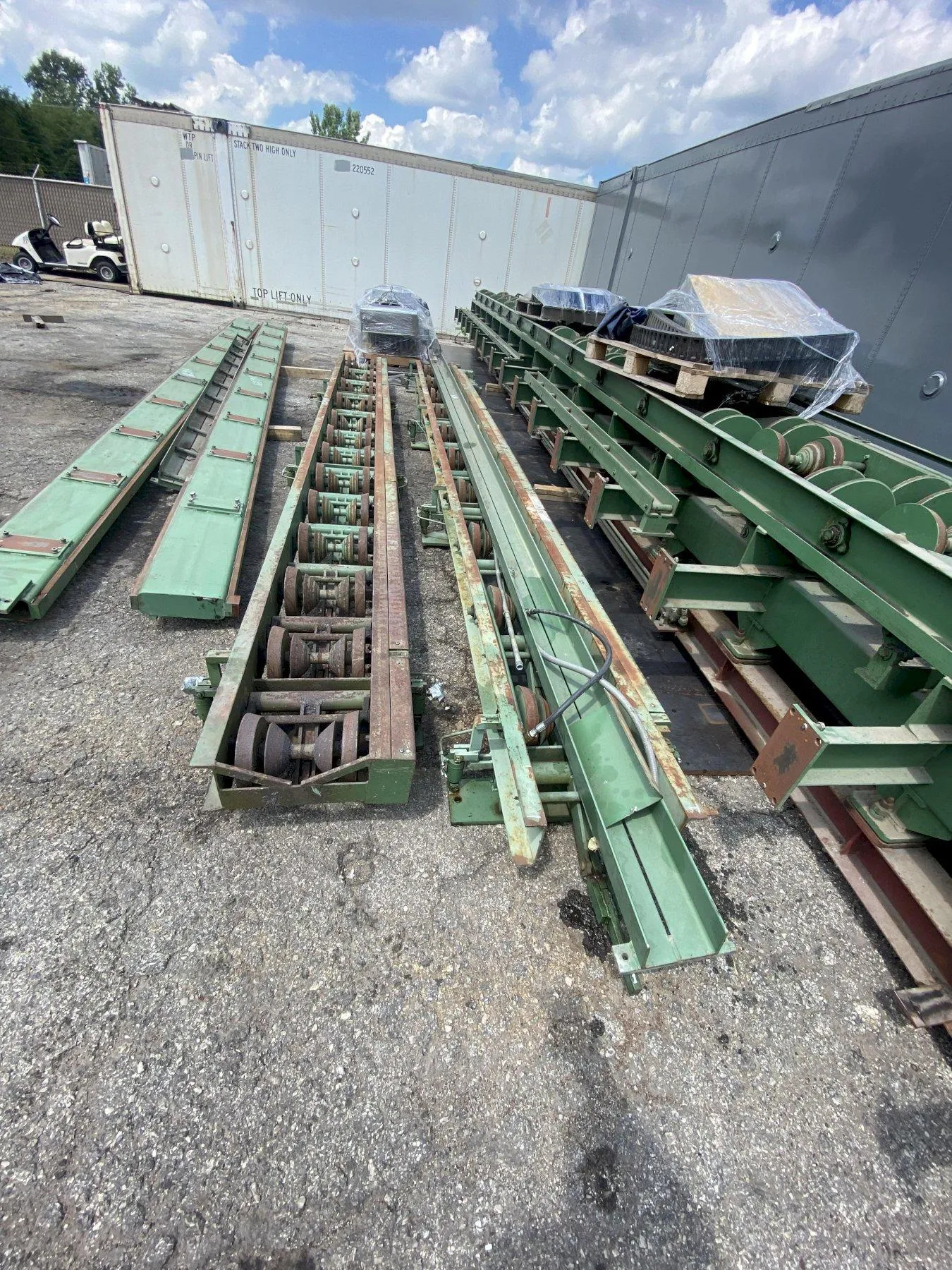

Infeed powered conveyor ... Yes, 45'
Outfeed powered conveyor .. Yes, 45'
Total length of conveyor .. 130' Approx
Table Load Capacity ....... 1000 lbs per ft
Max load capacity ......... 22,500 lbs
